Auto Koi Feeder,13B,KSF-2,Odr Trans,ACAT-32 Odr Anlg Timer,Wire

Availability Ships same or next business day from order with delivery average time of 1-4 days. Qualifies for FREE SHIPPING (other options available) Click on "ADD TO CART" to activate.
Bulk Pricing
  • Buy 2 - 4 and get 5% off
  • Buy 5 or above and get 7% off

Create Wishlist

Free shipping on all Super Feeders!  Mount this Koi feeder to a piece of 2x4 hung in the air using a metal pole or wood post or a vertical 2x4 in a bucket filled with concrete and placed in the water. The L shaped metal bracket can also be attached to a pipe.  Pictures over pond are only mounting examples and materials to mount the feeder to are not included.  Unlike some other fish feeders, the Super Feeder does not use a distribution vibrating/noisy apparatus causing food to pack and/or turn into powder.  This feeder can be electronically adjusted to feed fish sticks/pellets from a very small portion to a cup or more with multiple cycles. This 1 3/4 Quart size Super FeederCombo Deal includesOutdoor power supply kit and weatherproof 120V outdoor approved ACAT-32 daily Analog (mechanical) timer to give your fish up to 24 meals per day, all days of the week/year. This KSF-2 Super Feeder comes with two tough polycarbonate clear extensions for total capacity of about 1.5 lb. of dry fish food, a polycarbonate protective weatherproofing chute cover over the chute opening and all mounting hardware including a black powder-coated metal "L" shaped mounting bracket and one metal strap.  Included with the outdoor power supply kit:  One 6' short cord with a special screw-type sealed connector at one end to fit the power supply's output and a jack plug at the other end to fit the Super Feeder's side input jack (handy for calibrating feeder portion indoors before outdoor mounting).  One long 30' long wire is also included to reach the Super Feeder with a special screw-type sealed connector at one end to fit the power supply's output and metal spade connectors at the other end to fit the feeder's auxiliary input terminals underneath its floor.  As an added bonus if ever needed to use your own wire, a coaxial plug-to-wire adapter is included with this kit. Power supply: Input 110-120Vac 60Hz--Output 12Vac. Timer: Input/ouput: 120Vac 60Hz   USA style plugs only-this particular combo is not battery operated. THIS FEEDER WILL REQUIRE MOUNTING ABILITY AND PROPER PROTECTION (info will be provided with your order). When mounting this feeder outdoors, as a minimum, the chute cover area, dispenser and wire, should be adequately protected from wild animals. Overall size of feeder as shown: 7 1/4" x 3 1/2" x 11 3/4"" tall. Additional clear extensions or even a 1.5 gallon hopper is available for more capacity.

USA style plugs only-not battery operated but could be an option by purchasing a 12Vdc timer or the 12Vdc combo on this store. You may also operate the feeder with just about any other external timer to plug its power supply into.

Original KSF-2 Super Feeder serviceable for years to come, made in USA and sold by Super-Feed for over 26 years! All parts readily available and easy to replace if ever needed. Mount it outdoors or outdoors your very own way to fit your needs. Adjust it from very tiny to larger portions up to 24 times per day all year.





Mounting metal pipes you could use from Lowe's


ksf-2-hung-plastic-pipe1.jpg  ksf-2-hung-plastic-pipe2.jpg

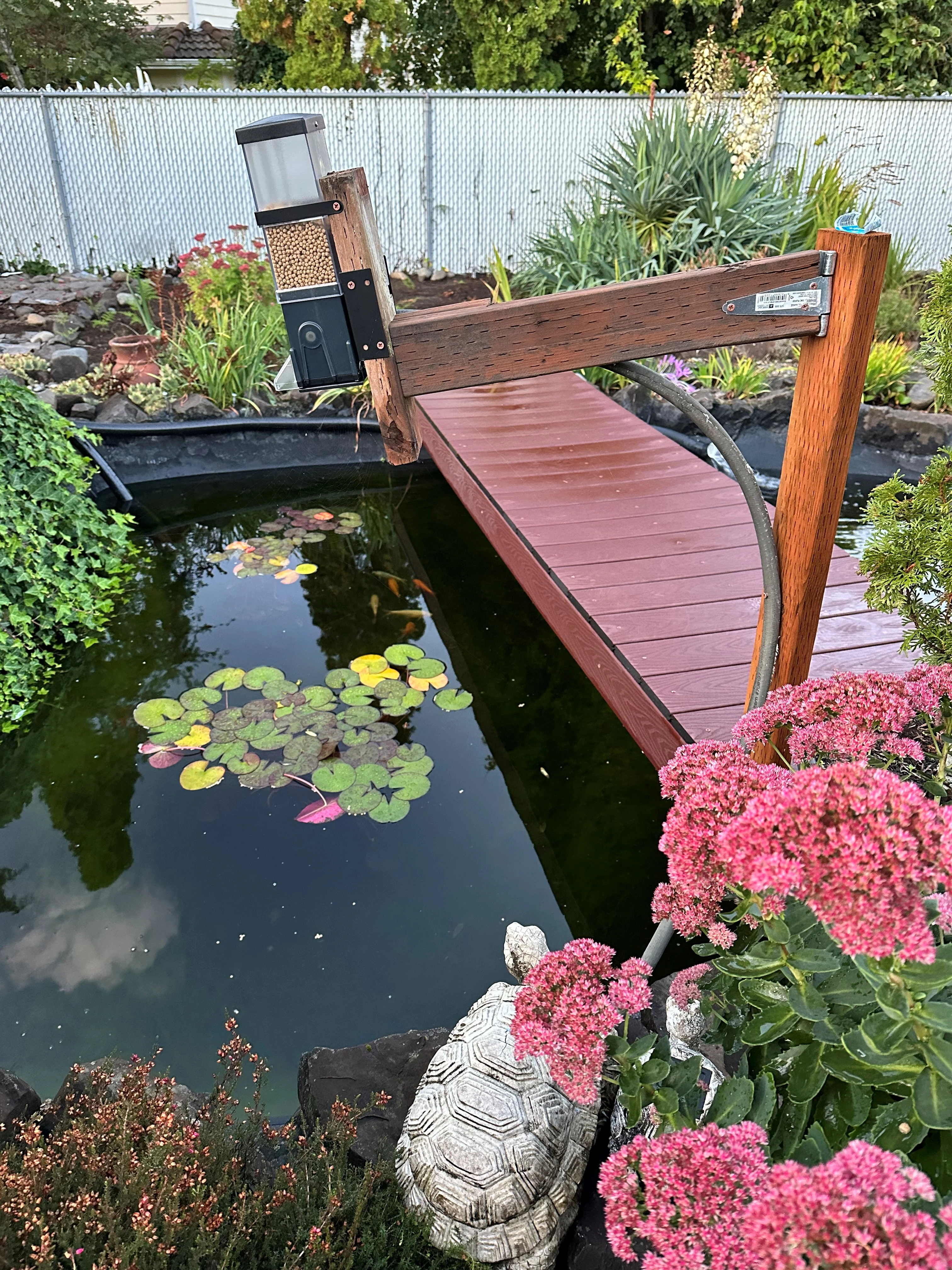

Mounting examples:

INTERNATIONAL CUSTOMERS WITH 220-240V:  Please click on "Q&A/Shipping" above and

How to use the feeder with a regular external timer: Basically any plug-in timer like a lamp timer can be used. Just follow directions included in feeder's manual.

How to use feeder with a home automation system:

Wi-Fi plugs we have tested and worked fine, although type that must be kept out of weather, are the WP1 plug or TP LINK HS100.

Note: Many Wi-Fi systems offered on the market today are perpetually vulnerable to perpetual changes and updates that can quickly render some products unusable.  In regards to other Wi-Fi switches on the market, some may not work if the socket does not turn off completely (some do and some may not), meaning that any residual power coming out of it during its off time will prevent the feeder from resetting itself between programmed feed cycles.


Remote-Controllable Dual Outlet:

Video examples:

1 year
