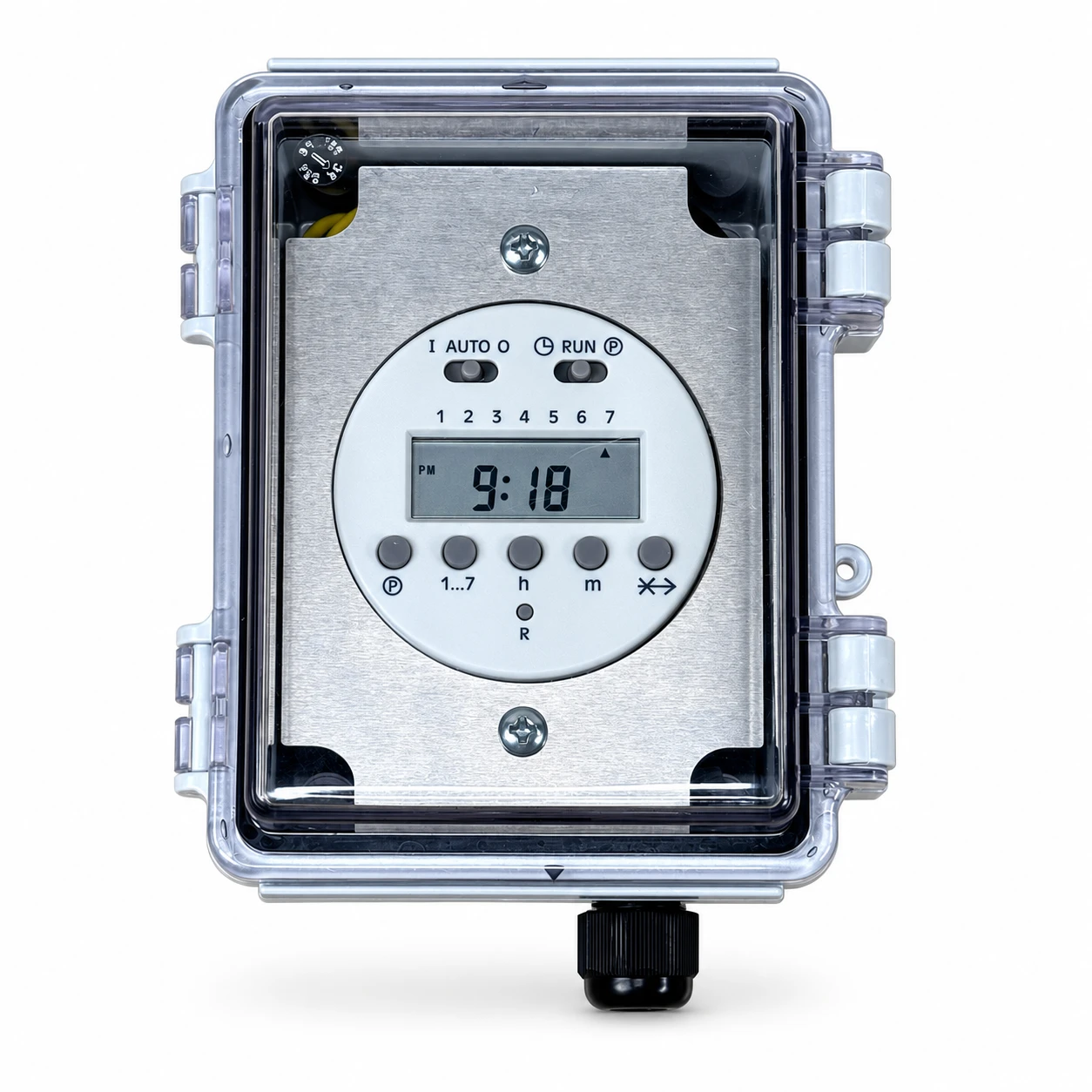

The DT-03 is a programmable 12VDC timer housed in a durable, weather-sealed polycarbonate enclosure designed to help protect the timer and wiring in outdoor or remote installations.
It contains the DT-01 programmable timer-DIEHL Series 884, model TA0005-and operates from a 12VDC battery or other compatible 12VDC power source. It can control a Super Feeder or serve as a programmable timed switch for other compatible 12VDC devices, including pumps, cameras, marine equipment, and similar applications.
Programming and Scheduling
The DT-03 can be programmed for up to 8 ON/OFF cycles per day, with schedules assigned to individual days or groups of days.
Its internal battery backup retains the programmed schedule and time settings when the timer is disconnected from its external power source.
Programming information and additional specifications are available at: https://www.super-feed.com/timers.html
Relay Capacity
The timer’s internal SPST relay contacts are rated for loads up to 16 amps maximum. Always verify that the voltage and current requirements of the connected device are compatible with the timer and do not exceed its relay-contact rating.
If your application exceeds the 16-amp contact rating-or operates close to that limit-use the timer to control an appropriately rated secondary relay or contactor. The secondary relay or contactor can then safely switch the higher-current load without placing the full load directly on the timer’s internal relay.
Installation
The DT-03 comes fully assembled, with the timer installed and internally wired. Only minor external wiring is required. Simply connect your wires using the supplied wire nuts and follow the included installation instructions.
The 12VDC power source and external wiring are not included.
Approximate External Dimensions:
- 5.1 × 3.9 × 2.7 inches
- 130 × 100 × 70 mm
Included Items:
- DT-03 weather-sealed polycarbonate enclosure
- DT-01 DIEHL Series 884 TA0005 programmable timer
- Supplied wire nuts for external connections
- Installation and programming instructions
You Will Need:
- A suitable 12VDC battery or other compatible 12VDC power source
- External wiring appropriate for your application
- An appropriately rated secondary relay or contactor if the load exceeds or operates close to the timer’s 16-amp contact rating
Features:
- Durable, weather-sealed polycarbonate enclosure
- Suitable for indoor or weather-protected outdoor installations
- Operates from a 12VDC battery or other 12VDC power source
- German-made, industrial-grade DIEHL timer
- DIEHL Series 884, model TA0005
- Up to 8 programmable ON/OFF cycles per day
- Individual-day or grouped-day scheduling
- Internal battery backup retains the time and programmed schedule
- SPST relay contacts rated up to 16 amps maximum
- Fully assembled and internally wired
- Only minor external wiring required
- Compact enclosure measuring 5.1 × 3.9 × 2.7 inches
- Optional customized 24VDC version available
Need a 24VDC Version?
Please contact us. We can customize the DT-03 with a 24VDC TA0030 programmable timer for your application.
If you are unsure whether the DT-03 is suitable for your application, please email us at info@super-feed.com. We will be glad to help.
Timer Manufacturer and Return Information
Timers are not manufactured by Super-Feed Enterprise.
This electronic item is not returnable for a refund if it has been misused, damaged, altered, or tampered with. A 90-day warranty applies if the item is found to be defective after contacting the seller. If a return is authorized, a return authorization will be issued.
Unused items returned in new, unopened condition are subject to a 10% restocking fee. Original shipping charges are nonrefundable.
